manufacturer of innovative discrete semiconductor solutions

CP226V-2N4392
2V,5V,50mA,1.8W Bare die,20.000 X 17.000 mils,JFET

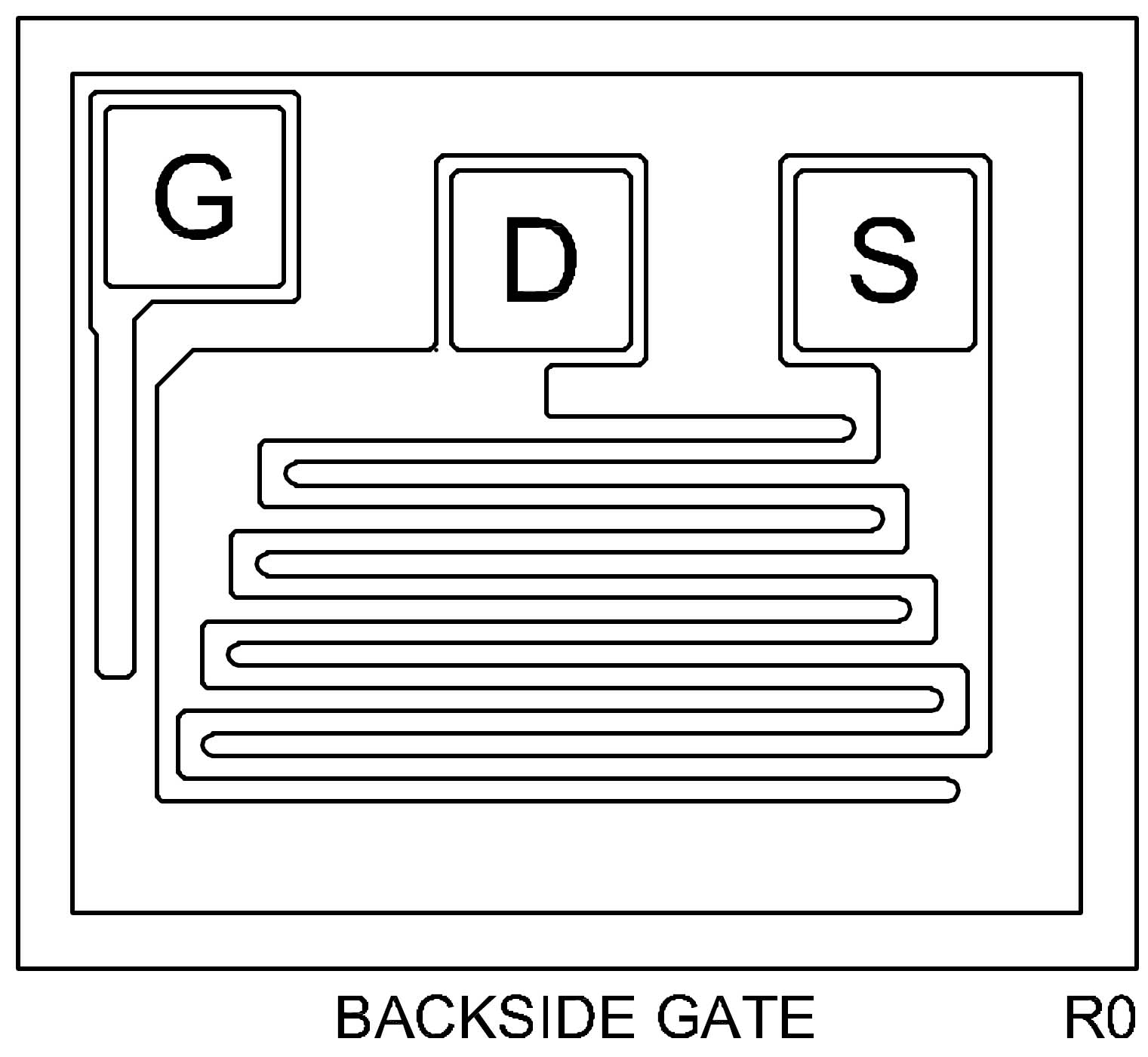

The image for CP226V-2N4392
is currently unavailable.

Please refer to the Device Datasheet for an image of the part case and material composition information.
Documentation Links:
Device Datasheet
Case & Material Composition Datasheet
Item Number Status Description Packaging Base Availability ECCN Code HTS Code Part Marking: Request Samples
CP226V-2N4392-CM Active 2V,5V,50mA,1.8W Bare die,20.000 X 17.000 mils,JFET WafflePack@400 Please call for Qty
EAR99 8541.29.0040
CP226V-2N4392-CT Active 2V,5V,50mA,1.8W Bare die,20.000 X 17.000 mils,JFET WafflePack@400 In Stock
EAR99 8541.29.0040
CP226V-2N4392-WN Active 2V,5V,50mA,1.8W Bare die,20.000 X 17.000 mils,JFET Wafer@45,000*</br>*Estimated, die qty will vary based on probing Please call for Qty
EAR99 8541.29.0040
CP226V-2N4392-CT20 Special Order Item 2V,5V,50mA,1.8W Bare die,20.000 X 17.000 mils,JFET WafflePack@20 In Stock
EAR99 8541.29.0040

Please note:
  1. If requesting Tin/Lead plated devices, add the suffix " TIN/LEAD" to the part number when ordering (example: 2N2222A TIN/LEAD).
  2. If requesting Lead (Pb) Free plated devices, add the suffix " PBFREE" to the part number when ordering (example: 2N2222A PBFREE).
A Central sales representative will confirm the availability of the plating type requested.

Additional Documentation Links:
Analytical Test Report:Wafer Transistor
Analytical Test Report:Wafer Schottky
Analytical Test Report:Wafer Switching Diode
Analytical Test Report:Die
Package Detail Document:WAFER
Analytical Test Report:Wafer Rectifier
Analytical Test Report:Wafer
Analytical Test Report:TVS Die
Analytical Test Report:Wafer/Die
Analytical Test Report:Die

Alternate Devices with Different Packaging:
Datasheet
Part Number
Description
Packaging
Package
Details
&
Composition
Status
Availability

CMPF4392
2V,5V,50mA,350mW Surface mount JFET N Channel
Box, Reel
Active

CP206-2N4392
2V,5V,50mA,1.8W Bare die,21.000 X 17.997 mils,JFET
WaferForm, WafflePack
Discontinued, Stock Only<br><a href="https://my.centralsemi.com/search/search2.php?searchtext=CP216-2N4392">Replaced by:CP216-2N4392</a>

CP216-2N4392
2V,5V,50mA,1.8W Bare die,21.000 X 16.000 mils,JFET
WaferForm, WafflePack
Discontinued, Stock Only<br><a href="https://my.centralsemi.com/search/search2.php?searchtext=CP226V-2N4392">Replaced by:CP226V-2N4392</a>

PN4392
2V,5V,50mA,625mW Through-Hole JFET N Channel
Box, Ammo, Reel
Active

2N4392
2V,5V,50mA,1.8W Through-Hole JFET N Channel
Box
Active
