Central Semiconductor

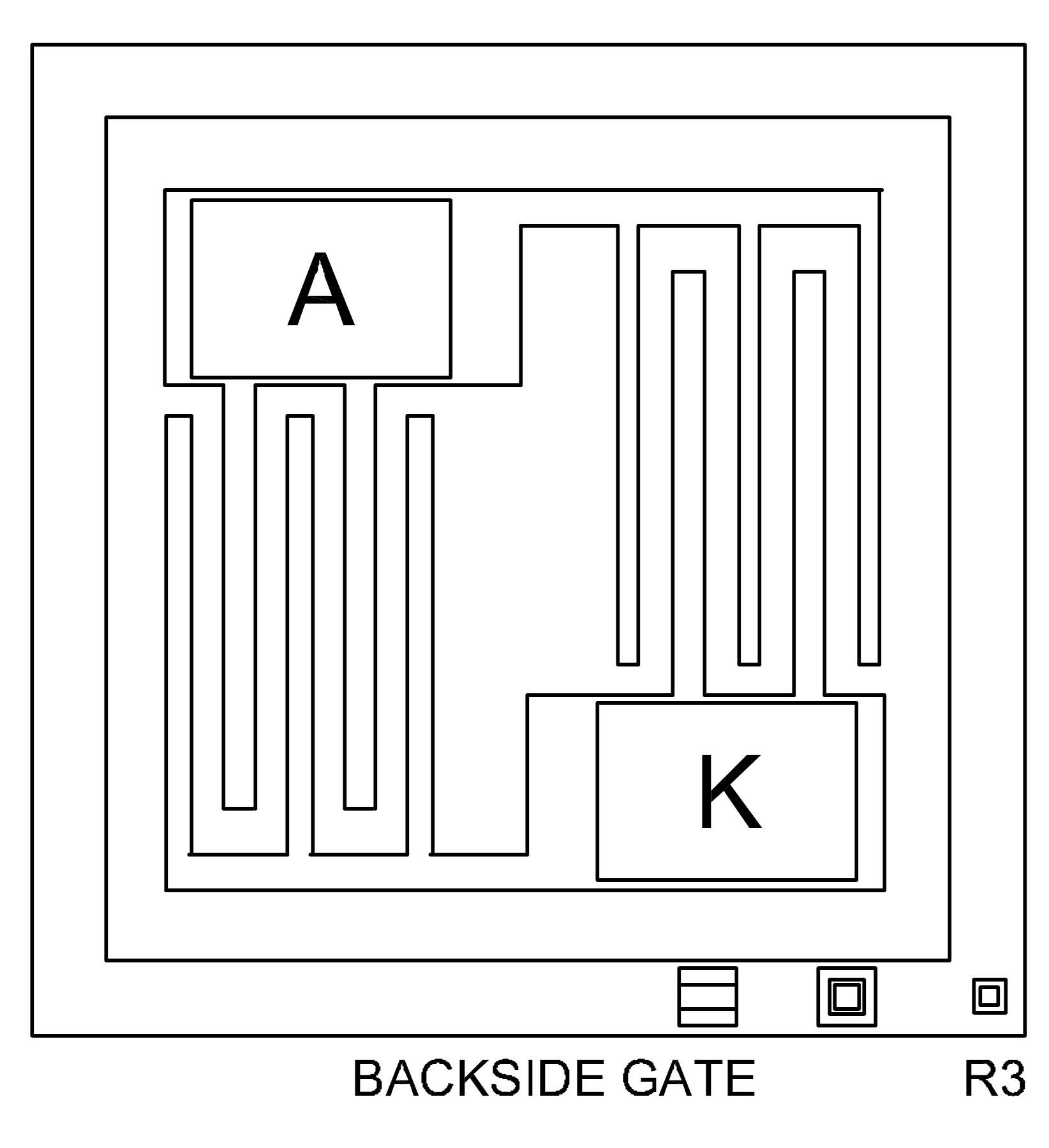

CP624-2N6028
40V,150mA Bare die,27.560 X 27.560 mils,Programmable UJT
The image for CP624-2N6028
is currently unavailable.
Please refer to the Device Datasheet for an image of the part case and material composition information.
Documentation Links:
Device Datasheet
Case & Material Composition Datasheet
Item Number Status Description Packaging Base Availability ECCN Code HTS Code Part Marking: Request Samples
CP624-2N6028-CT Active 40V,150mA Bare die,27.560 X 27.560 mils,Programmable UJT WafflePack@400 Please call for Qty
 EAR99 8541.21.0040
CP624-2N6028-WN Active 40V,150mA Bare die,27.560 X 27.560 mils,Programmable UJT Wafer@8,894*</br>*Estimated, die qty will vary based on probing In Stock
 EAR99 8541.21.0040

Please note:
  1. If requesting Tin/Lead plated devices, add the suffix " TIN/LEAD" to the part number when ordering (example: 2N2222A TIN/LEAD).
  2. If requesting Lead (Pb) Free plated devices, add the suffix " PBFREE" to the part number when ordering (example: 2N2222A PBFREE).
A Central sales representative will confirm the availability of the plating type requested.

Additional Documentation Links:
Analytical Test Report:Wafer Transistor
Analytical Test Report:Wafer Schottky
Analytical Test Report:Wafer Switching Diode
Analytical Test Report:Die
Analytical Test Report:Die
Analytical Test Report:Die
Package Detail Document:WAFER
Analytical Test Report:Wafer Zener
Analytical Test Report:Wafer Rectifier
Analytical Test Report:Wafer
Analytical Test Report:TVS Die
Analytical Test Report:Wafer/Die
Analytical Test Report:Die
Analytical Test Report:Die

Alternate Devices with Different Packaging:
Datasheet
Part Number
Description
Packaging
Package
Details &
Composition
Status
Availability

CMPP6028 		40V,150mA Surface mount Programmable UJT
Box, Reel
Active

2N6028 		40V,150mA Through-Hole Programmable UJT
Box, Ammo, Reel
Active
