CPD80V-CMPD2003

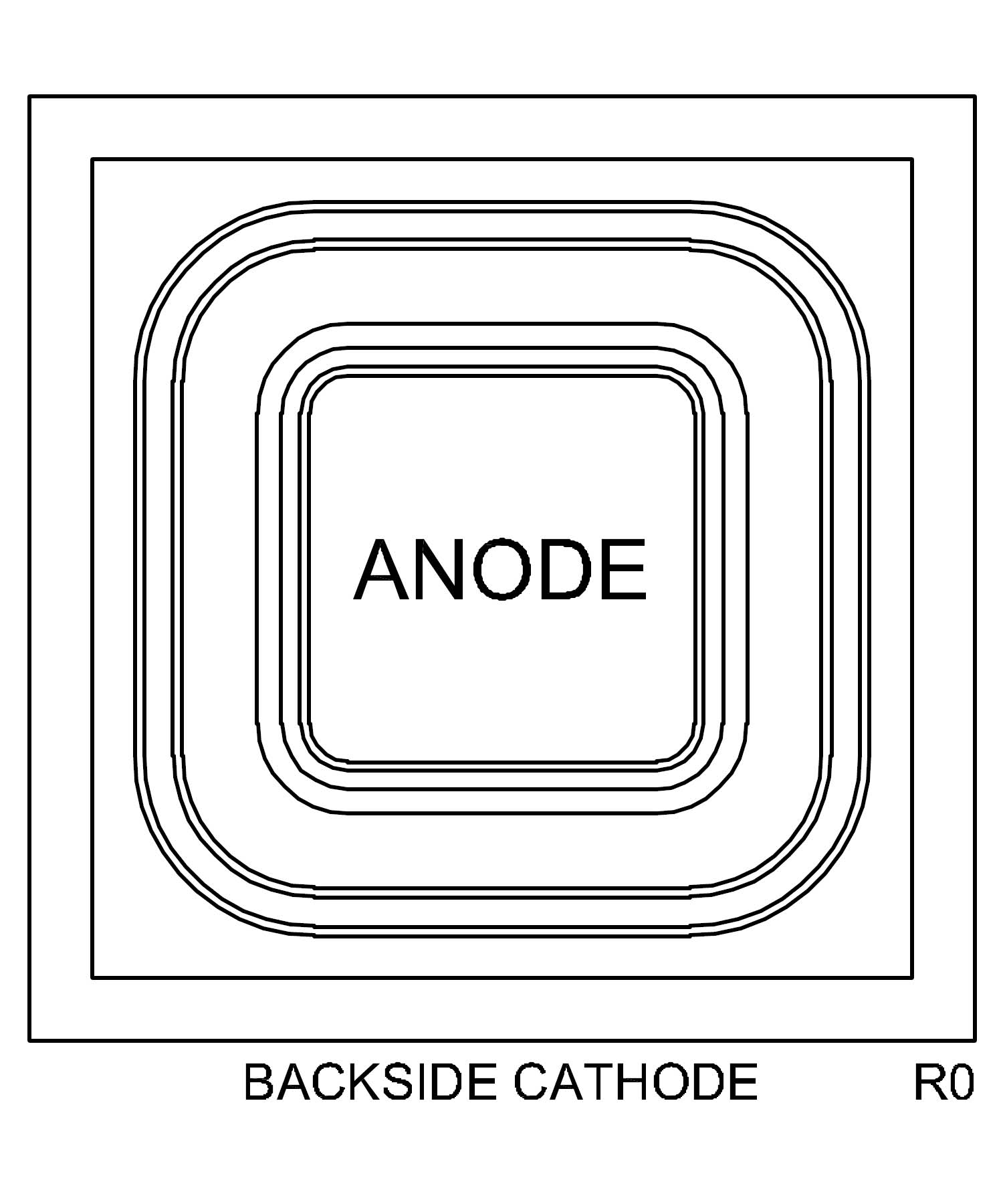

200mA,250V Bare die,16.100 X 16.100 mils,Diode-Switching
The image for CPD80V-CMPD2003
is currently unavailable.

Please refer to the Device Datasheet for an image of the part case and material composition information.
Documentation Links:
Device Datasheet
Case & Material Composition Datasheet
Item Number Status Description Packaging Base Availability ECCN Code HTS Code Part Marking: Request Samples
CPD80V-CMPD2003-CT Active 200mA,250V Bare die,16.100 X 16.100 mils,Diode-Switching WafflePack@400 In Stock
EAR99 8541.10.0040
CPD80V-CMPD2003-WN Active 200mA,250V Bare die,16.100 X 16.100 mils,Diode-Switching Wafer@65,333*</br>*Estimated, die qty will vary based on probing Please call for Qty
EAR99 8541.10.0040

Please note:
  1. If requesting Tin/Lead plated devices, add the suffix " TIN/LEAD" to the part number when ordering (example: 2N2222A TIN/LEAD).
  2. If requesting Lead (Pb) Free plated devices, add the suffix " PBFREE" to the part number when ordering (example: 2N2222A PBFREE).
A Central sales representative will confirm the availability of the plating type requested.
