CPD83V-CMPD914
250mA,100V Bare die,11.027 X 11.027 mils,Diode-Switching

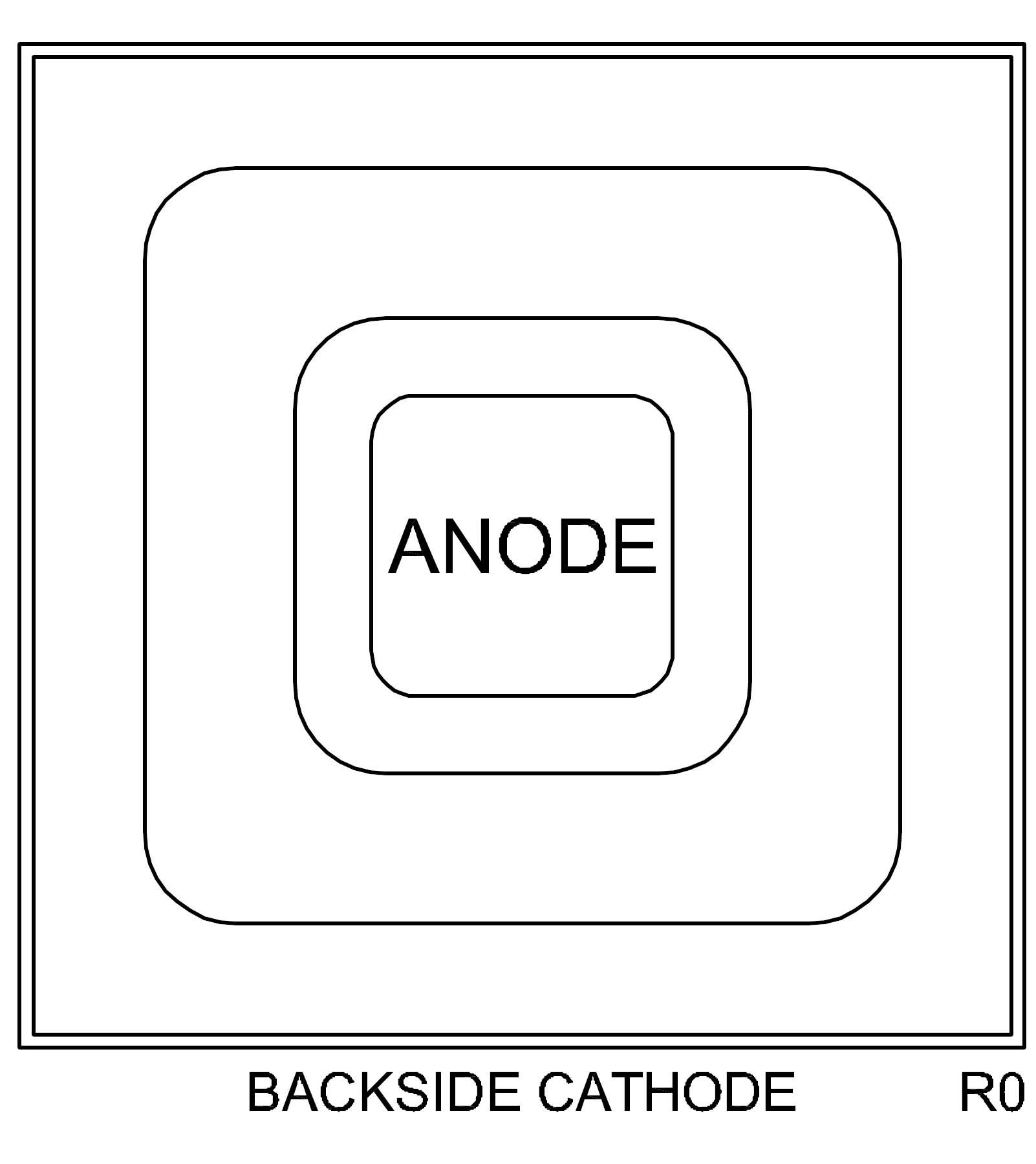

The image for CPD83V-CMPD914
is currently unavailable.

Please refer to the Device Datasheet for an image of the part case and material composition information.
Documentation Links:
Device Datasheet
Case & Material Composition Datasheet
Item Number Status Description Packaging Base Availability ECCN Code HTS Code Part Marking: Request Samples
CPD83V-CMPD914-CT Active 250mA,100V Bare die,11.027 X 11.027 mils,Diode-Switching WafflePack@400 In Stock
EAR99 8541.10.0040

Please note:
  1. If requesting Tin/Lead plated devices, add the suffix " TIN/LEAD" to the part number when ordering (example: 2N2222A TIN/LEAD).
  2. If requesting Lead (Pb) Free plated devices, add the suffix " PBFREE" to the part number when ordering (example: 2N2222A PBFREE).
A Central sales representative will confirm the availability of the plating type requested.

Additional Documentation Links:
Analytical Test Report:Wafer Transistor
Analytical Test Report:Wafer Schottky
Analytical Test Report:Wafer Switching Diode
Analytical Test Report:Wafer Zener
Analytical Test Report:Wafer Schottky
Analytical Test Report:Active Device, Rectifier
Analytical Test Report:Wafer/Die
Analytical Test Report:Die
Analytical Test Report:Die
Analytical Test Report:Die
Analytical Test Report:Die
Analytical Test Report:Die
Spice Model:Spice Model CPD83V
Package Detail Document:WAFER

Alternate Devices with Different Packaging:
Datasheet
Part Number
Description
Packaging
Package
Details
&
Composition
Status
Availability

CLL914
250mA,100V Surface mount Diode-Switching Single
Box, Reel
Active

CMPD914
250mA,100V Surface mount Diode-Switching Single
Box, Reel
Active
