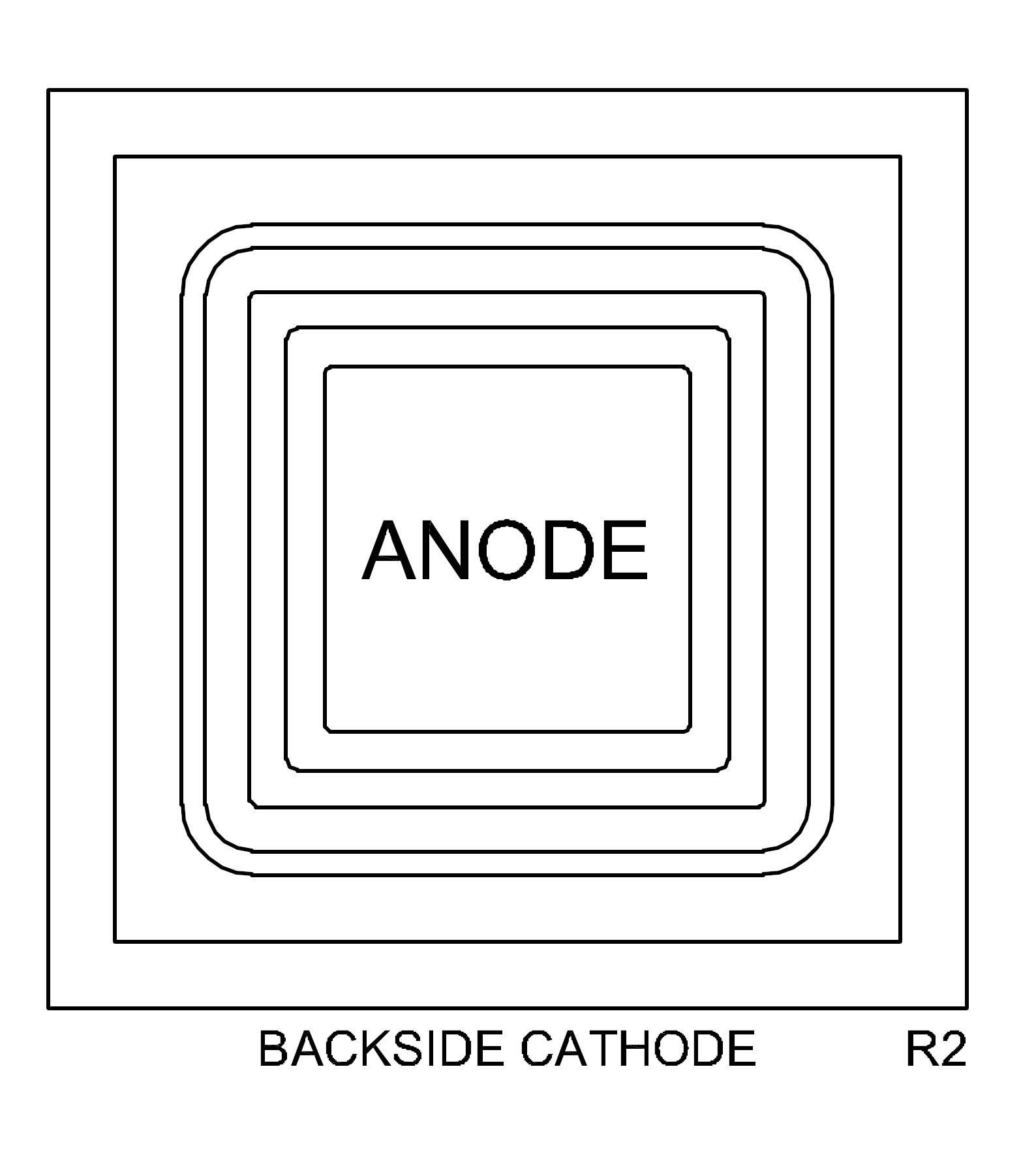

CPL03-CJD0500
Bare die,15.700 X 15.700 mils,CLD Series
The image for CPL03-CJD0500
is currently unavailable.

Please refer to the Device Datasheet for an image of the part case and material composition information.
Documentation Links:
Device Datasheet
Case & Material Composition Datasheet
Item Number Status Description Packaging Base Availability ECCN Code HTS Code Part Marking: Request Samples
CPL03-CJD0500-CM200 Special Order Item Bare die,15.700 X 15.700 mils,CLD Series WafflePack@200 Please call for Qty
EAR99 8541.10.0040

Please note:
  1. If requesting Tin/Lead plated devices, add the suffix " TIN/LEAD" to the part number when ordering (example: 2N2222A TIN/LEAD).
  2. If requesting Lead (Pb) Free plated devices, add the suffix " PBFREE" to the part number when ordering (example: 2N2222A PBFREE).
A Central sales representative will confirm the availability of the plating type requested.

Additional Documentation Links:
Analytical Test Report:Wafer Transistor
Analytical Test Report:Wafer Schottky
Analytical Test Report:Wafer Switching Diode
Analytical Test Report:Die
Analytical Test Report:Die
Package Detail Document:WAFER

Alternate Devices with Different Packaging:
Datasheet
Part Number
Description
Packaging
Package
Details
&
Composition
Status
Availability

CCLM0500
100V,.515mA Surface mount Diode-Current Limiting Single
Box, Reel
Discontinued, Stock Only<br><a href="https://my.centralsemi.com/search/search2.php?searchtext=CMJ0500">Replaced by:CMJ0500</a>

None



CCL0500
100V,.515mA Through-Hole Diode-Current Limiting Single
Box, Reel
Active

CMJ0500
100V,.515mA Surface mount Diode-Current Limiting Single
Box, Reel
Active
