CPZ28X-BZX55C18

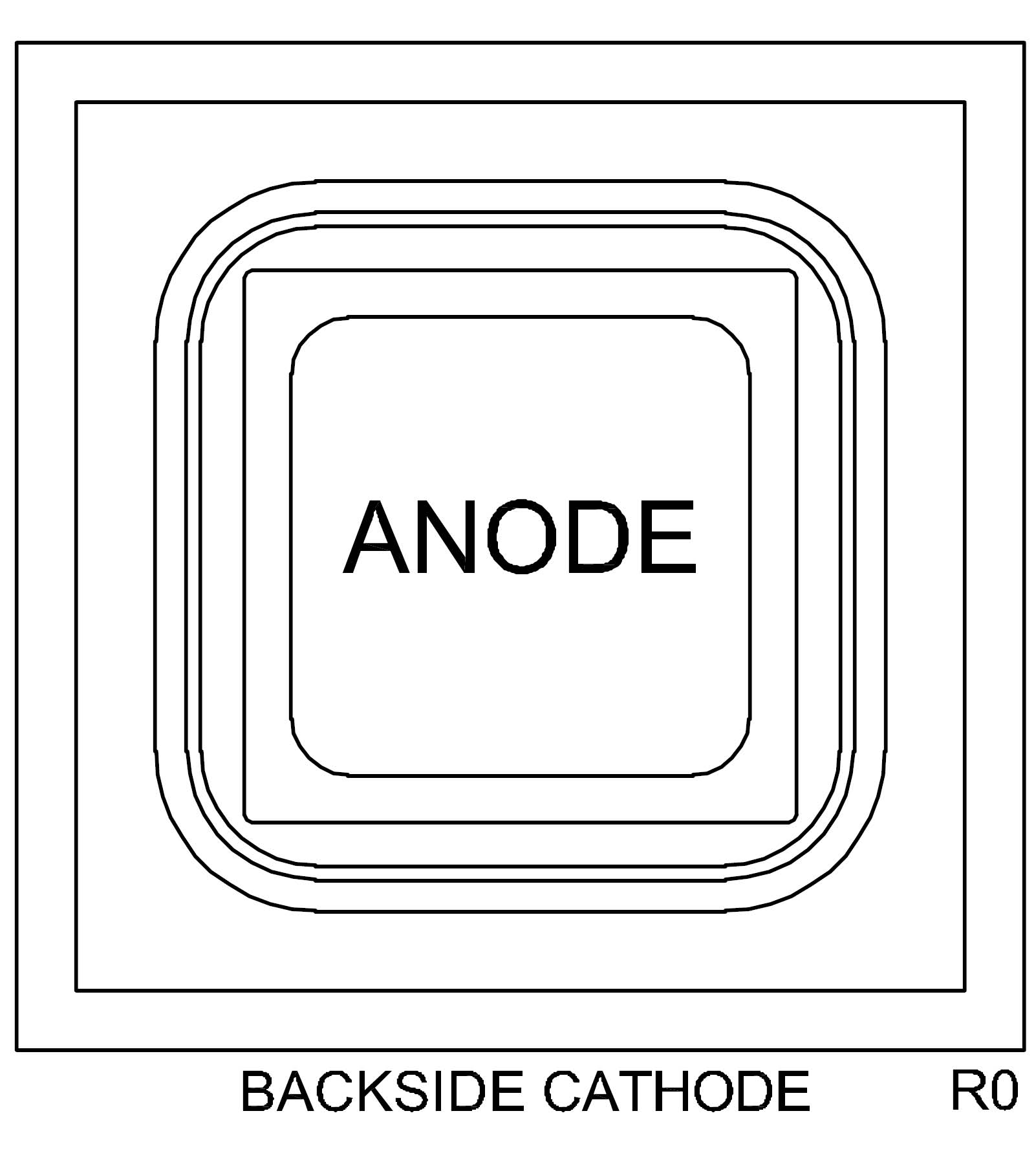

Bare die,12.990 X 12.990 mils,0.5W Zener Diode
The image for CPZ28X-BZX55C18
is currently unavailable.
Please refer to the Device Datasheet for an image of the part case and material composition information.
Documentation Links:
Device Datasheet
Case & Material Composition Datasheet
Item Number Status Description Packaging Base Availability ECCN Code HTS Code Part Marking: Request Samples
CPZ59X-BZX55C18-CT Active Bare die,12.990 X 12.990 mils,0.5W Zener Diode WafflePack@400 Please call for Qty
Replaces CPZ28X-BZX55C18-CT 		EAR99 8541.10.0040
CPZ59X-BZX55C18-WN Active Bare die,12.990 X 12.990 mils,0.5W Zener Diode Wafer@101,184*</br>*Estimated, die qty will vary based on probing Please call for Qty
Replaces CPZ28X-BZX55C18-WN 		EAR99 8541.10.0040
CPZ28X-BZX55C18-CT Limited Availability Bare die,12.990 X 12.990 mils,0.5W Zener Diode WafflePack@400 Replaced by CPZ59X-BZX55C18-CT
Exact Electrical Equivalent, Slight Mechanical Differences 		EAR99 8541.10.0040
CPZ28X-BZX55C18-WN Limited Availability Bare die,12.990 X 12.990 mils,0.5W Zener Diode Wafer@101,184*</br>*Estimated, die qty will vary based on probing Replaced by CPZ59X-BZX55C18-WN
Exact Electrical Equivalent, Slight Mechanical Differences 		EAR99 8541.10.0040
