CPZ33R-CMNTVS12V
18W,9V Bare die,14.200 X 14.200 mils,Transient Voltage Suppressor

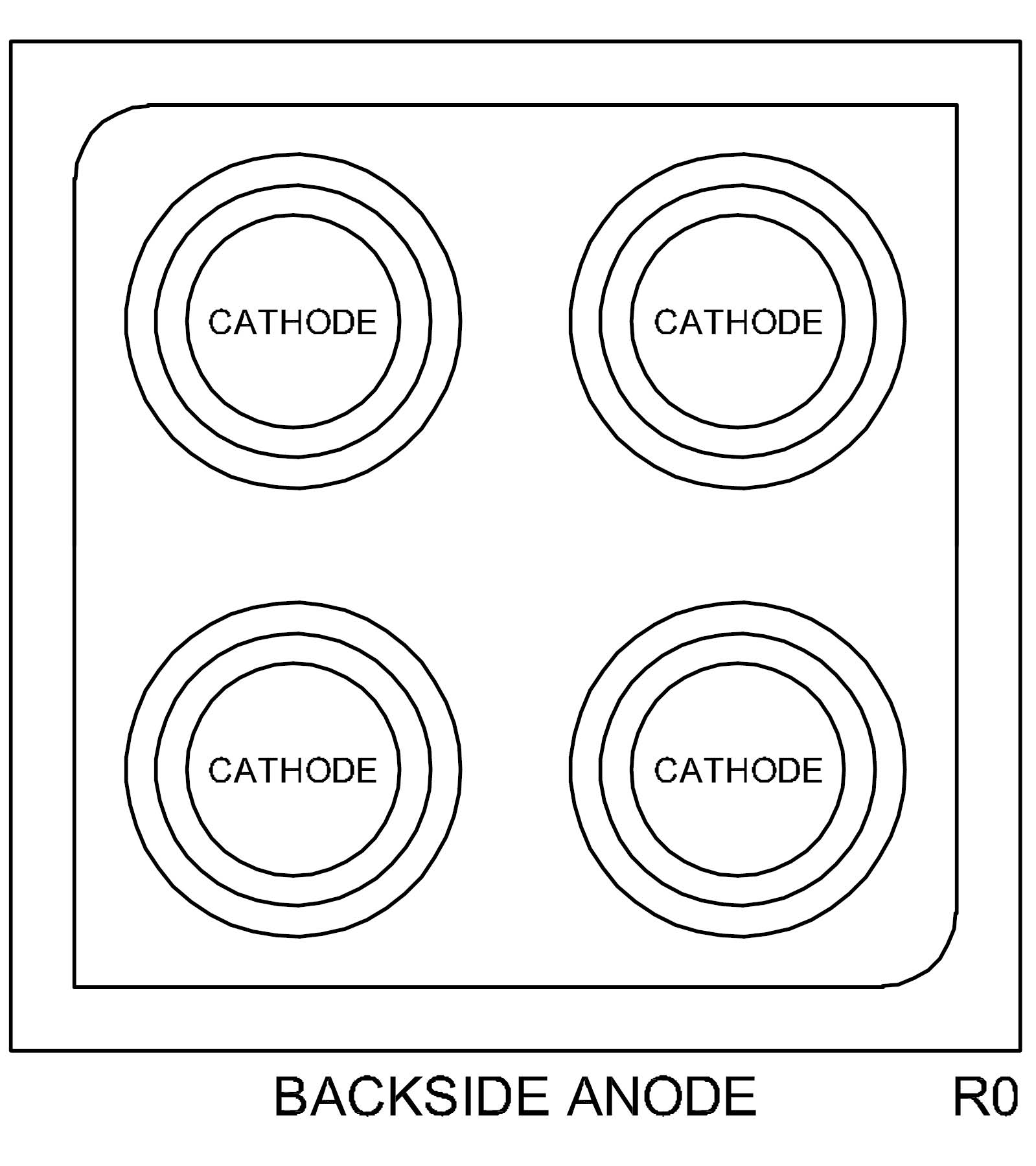

The image for CPZ33R-CMNTVS12V
is currently unavailable.
Please refer to the Device Datasheet for an image of the part case and material composition information.

Documentation Links:

Device Datasheet

Case & Material Composition Datasheet

Item Number

Status

Description

Packaging Base

Availability

ECCN Code

HTS Code

Part Marking:

Request Samples

CPZ33R-CMNTVS12V-CT

Active

18W,9V Bare die,14.200 X 14.200 mils,Transient Voltage Suppressor

WafflePack@400

Please call for Qty

EAR99

8541.10.0040

CPZ33R-CMNTVS12V-WN

Active

18W,9V Bare die,14.200 X 14.200 mils,Transient Voltage Suppressor

Wafer@84,926*</br>*Estimated, die qty will vary based on probing

Please call for Qty

EAR99

8541.10.0040

Please note:

If requesting Tin/Lead plated devices, add the suffix " TIN/LEAD" to the part number when ordering (example: 2N2222A TIN/LEAD).

If requesting Lead (Pb) Free plated devices, add the suffix " PBFREE" to the part number when ordering (example: 2N2222A PBFREE).

A Central sales representative will confirm the availability of the plating type requested.

Additional Documentation Links:

Analytical Test Report:Wafer Transistor

Analytical Test Report:Wafer Schottky

Analytical Test Report:Wafer Switching Diode

Analytical Test Report:Die

Package Detail Document:WAFER

Analytical Test Report:Wafer Rectifier

Analytical Test Report:Wafer

Analytical Test Report:TVS Die

Analytical Test Report:Wafer/Die

Analytical Test Report:Die

Alternate Devices with Different Packaging:

Datasheet

Part Number

Description

Packaging

Package
Details &
Composition

Status

Availability

CMNTVS12V

18W,9V Surface mount Transient Voltage Suppressor Low Capacitance Array (<=10pF)

Box, Reel

SOT-953

Special Order Item

In stock

Click to view availability
