CPD66X-1N3595

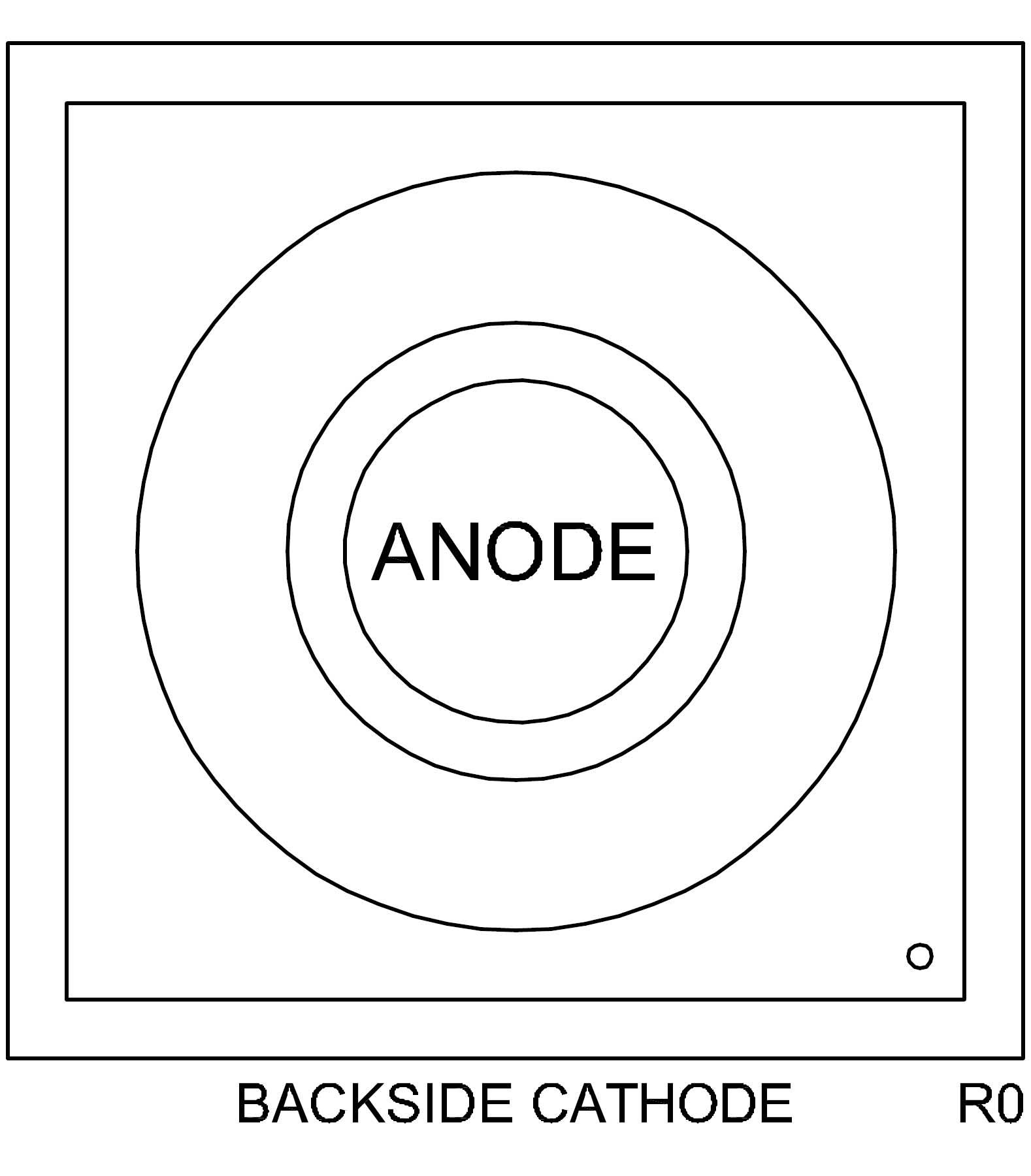

Bare die,17.500 X 17.500 mils,Diode-Switching,Low Leakage Switching Diode
The image for CPD66X-1N3595
is currently unavailable.
Please refer to the Device Datasheet for an image of the part case and material composition information.
Documentation Links:
Device Datasheet
Case & Material Composition Datasheet
Item Number Status Description Packaging Base Availability ECCN Code HTS Code Part Marking: Request Samples
CPD66X-1N3595-CM Active Bare die,17.500 X 17.500 mils,Diode-Switching,Low Leakage Switching Diode WafflePack@400 Please call for Qty
 EAR99 8541.10.0040
CPD66X-1N3595-CT Active Bare die,17.500 X 17.500 mils,Diode-Switching,Low Leakage Switching Diode WafflePack@400 Please call for Qty
 EAR99 8541.10.0040
CPD66X-1N3595-WN Active Bare die,17.500 X 17.500 mils,Diode-Switching,Low Leakage Switching Diode Wafer@55,461*</br>*Estimated, die qty will vary based on probing In Stock
 EAR99 8541.10.0040
CPD66X-1N3595-WR Active Bare die,17.500 X 17.500 mils,Diode-Switching,Low Leakage Switching Diode Wafer@55,461*</br>*Estimated, die qty will vary based on probing Please call for Qty
 EAR99 8541.10.0040
CPD66X-1N3595-CT20 Special Order Item Bare die,17.500 X 17.500 mils,Diode-Switching,Low Leakage Switching Diode WafflePack@20 Please call for Qty
 EAR99 8541.10.0040
