manufacturer of innovative discrete semiconductor solutions

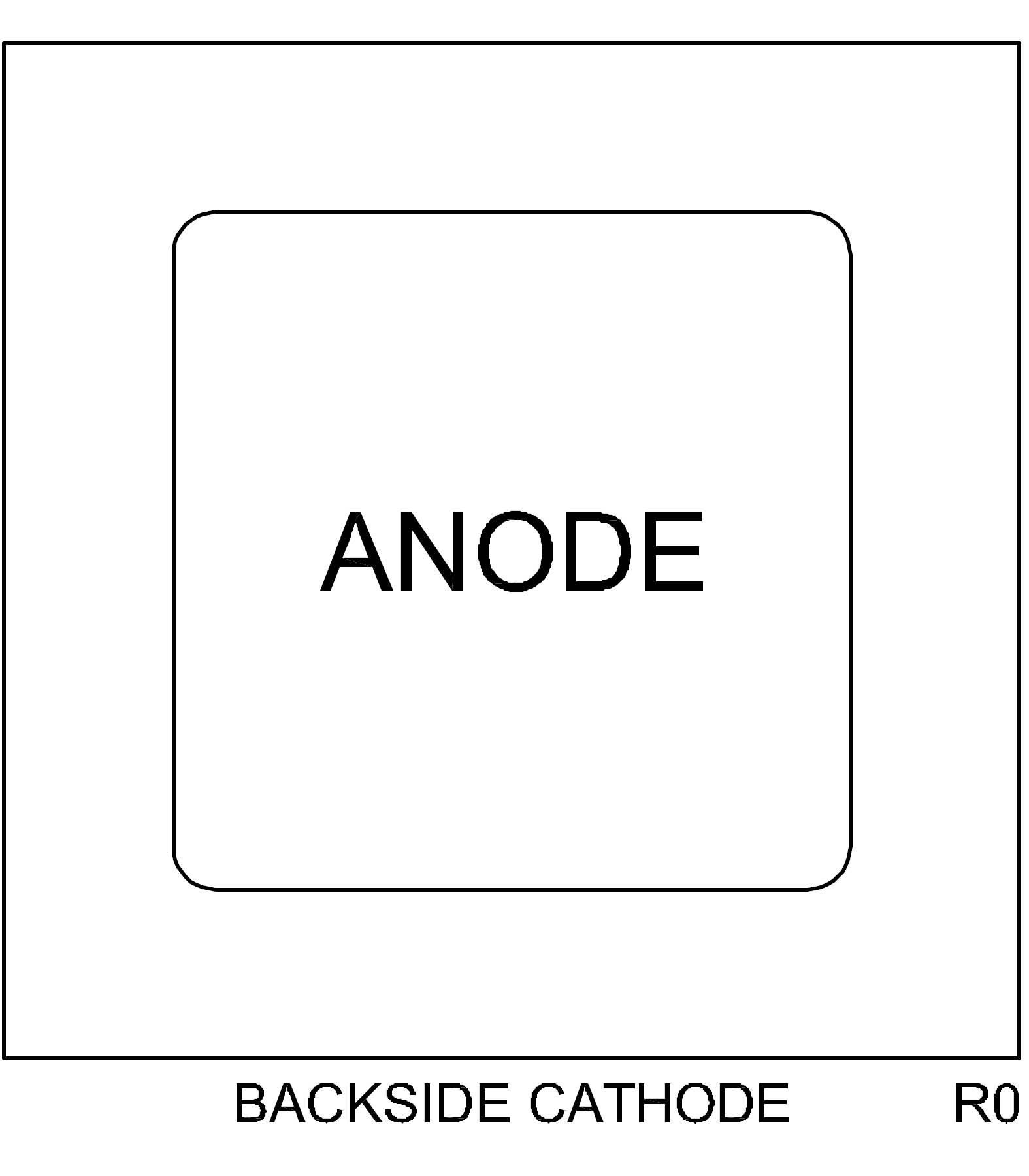

CPZ19-BZX55C33
Bare die,17.716 X 17.716 mils,0.5W Zener Diode
The image for CPZ19-BZX55C33
is currently unavailable.

Please refer to the Device Datasheet for an image of the part case and material composition information.
Documentation Links:
Device Datasheet
Case & Material Composition Datasheet
Item Number Status Description Packaging Base Availability ECCN Code HTS Code Part Marking: Request Samples
CPZ19-BZX55C33-CT Discontinued, Stock Only Bare die,17.716 X 17.716 mils,0.5W Zener Diode WafflePack@400 In Stock
EAR99 8541.10.0040

Please note:
  1. If requesting Tin/Lead plated devices, add the suffix " TIN/LEAD" to the part number when ordering (example: 2N2222A TIN/LEAD).
  2. If requesting Lead (Pb) Free plated devices, add the suffix " PBFREE" to the part number when ordering (example: 2N2222A PBFREE).
A Central sales representative will confirm the availability of the plating type requested.

Additional Documentation Links:
Analytical Test Report:Wafer Transistor
Analytical Test Report:Wafer Schottky
Analytical Test Report:Wafer Switching Diode
Analytical Test Report:Die
Analytical Test Report:Die
Process Change Notice:CPZ19 REPLACED WITH CPZ28
Package Detail Document:WAFER

Alternate Devices with Different Packaging:
Datasheet
Part Number
Description
Packaging
Package
Details
&
Composition
Status
Availability

BZV55C33
33V,500mW Surface mount Diode-Zener Single: Standard
Reel
Active
