CMDD6263
70V Surface mount Diode-Schottky (<1A) Single: High Voltage

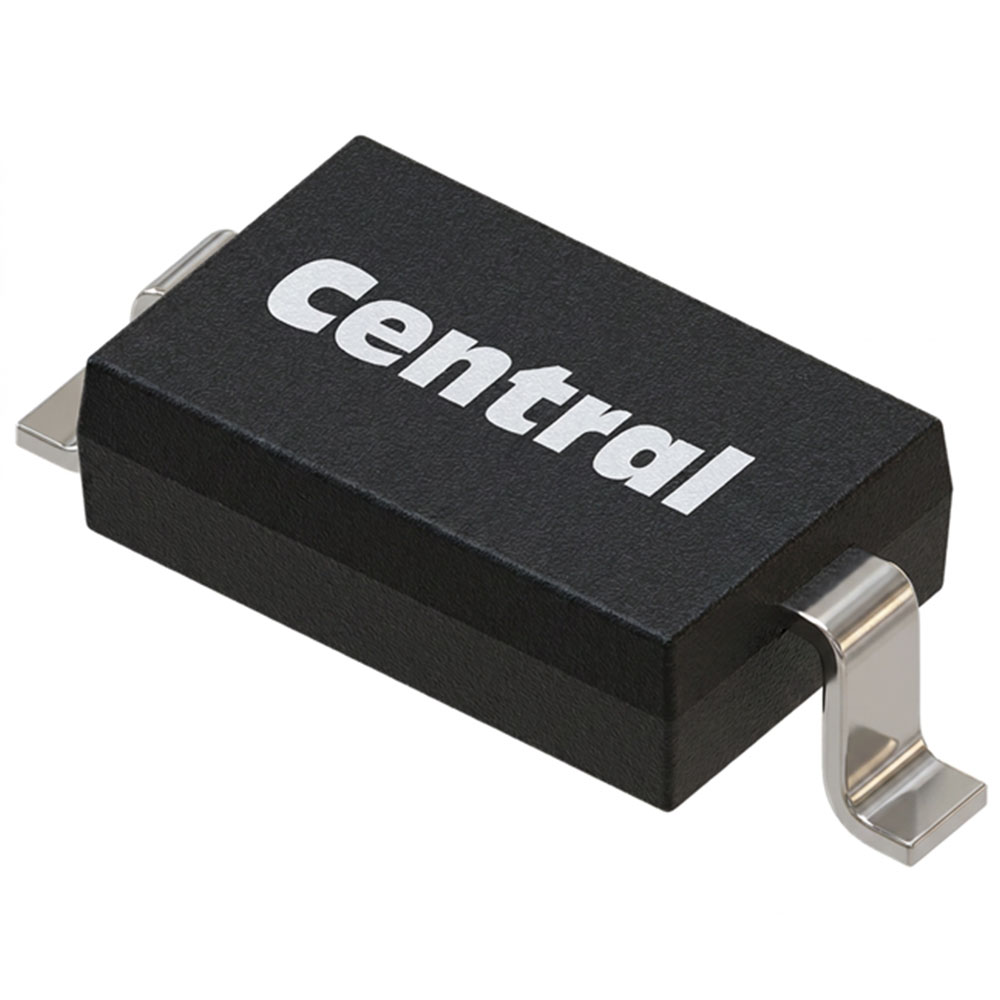

CMDD6263 product image
Documentation Links:
Device Datasheet
Case & Material Composition Datasheet
Chip Process Datasheet:CPD102X-CMOD6263
Chip Process Datasheet:CPD102X-CMOD6263
Item Number Status Description Packaging Base Availability ECCN Code HTS Code Part Marking: Request Samples
CPD102X-CMPD6263-CT Active 15mA,70V Bare die,9.060 X 9.060 mils,Diode-Schottky (<1A) WafflePack@1,024 In Stock
EAR99 8541.10.0040
CPD102X-CMPD6263-WN Active 15mA,70V Bare die,9.060 X 9.060 mils,Diode-Schottky (<1A) Wafer@210,600*</br>*Estimated, die qty will vary based on probing Please call for Qty
EAR99 8541.10.0040
CPD102X-CMPD6263-WR Active 15mA,70V Bare die,9.060 X 9.060 mils,Diode-Schottky (<1A) Wafer@210,600*</br>*Estimated, die qty will vary based on probing Please call for Qty
EAR99 8541.10.0040
CPD102X-1N6263-WN Active Bare die,9.060 X 9.060 mils,Diode-Schottky (<1A),High Voltage Schottky Diode Wafer@210,600*</br>*Estimated, die qty will vary based on probing Please call for Qty
EAR99 8541.10.0040
CPD92-CMPD6263-CT Discontinued 15mA,70V Bare die,9.053 X 9.053 mils,Diode-Schottky (<1A) WafflePack@1,024 Replaced by CPD102X-CMPD6263-CT
Exact Electrical Equivalent, Slight Mechanical Differences
EAR99 8541.10.0040
CPD92X-CMPD6263-WR Discontinued 15mA,70V Bare die,9.053 X 9.053 mils,Diode-Schottky (<1A) Wafer@209,532*</br>*Estimated, die qty will vary based on probing Replaced by CPD102X-CMPD6263-WR
Exact Electrical Equivalent, Slight Mechanical Differences
EAR99 8541.10.0040
CMDD6263 BK Please Call 70V Surface mount Diode-Schottky (<1A) Single: High Voltage Box@5,000 None
EAR99 8541.10.0070 D63
Either
PBFREE
TIN/LEAD
CMDD6263 TR Please Call 70V Surface mount Diode-Schottky (<1A) Single: High Voltage Reel@3,000 In Stock
EAR99 8541.10.0070 D63
Either
PBFREE
TIN/LEAD
