manufacturer of innovative discrete semiconductor solutions
Central Semiconductor

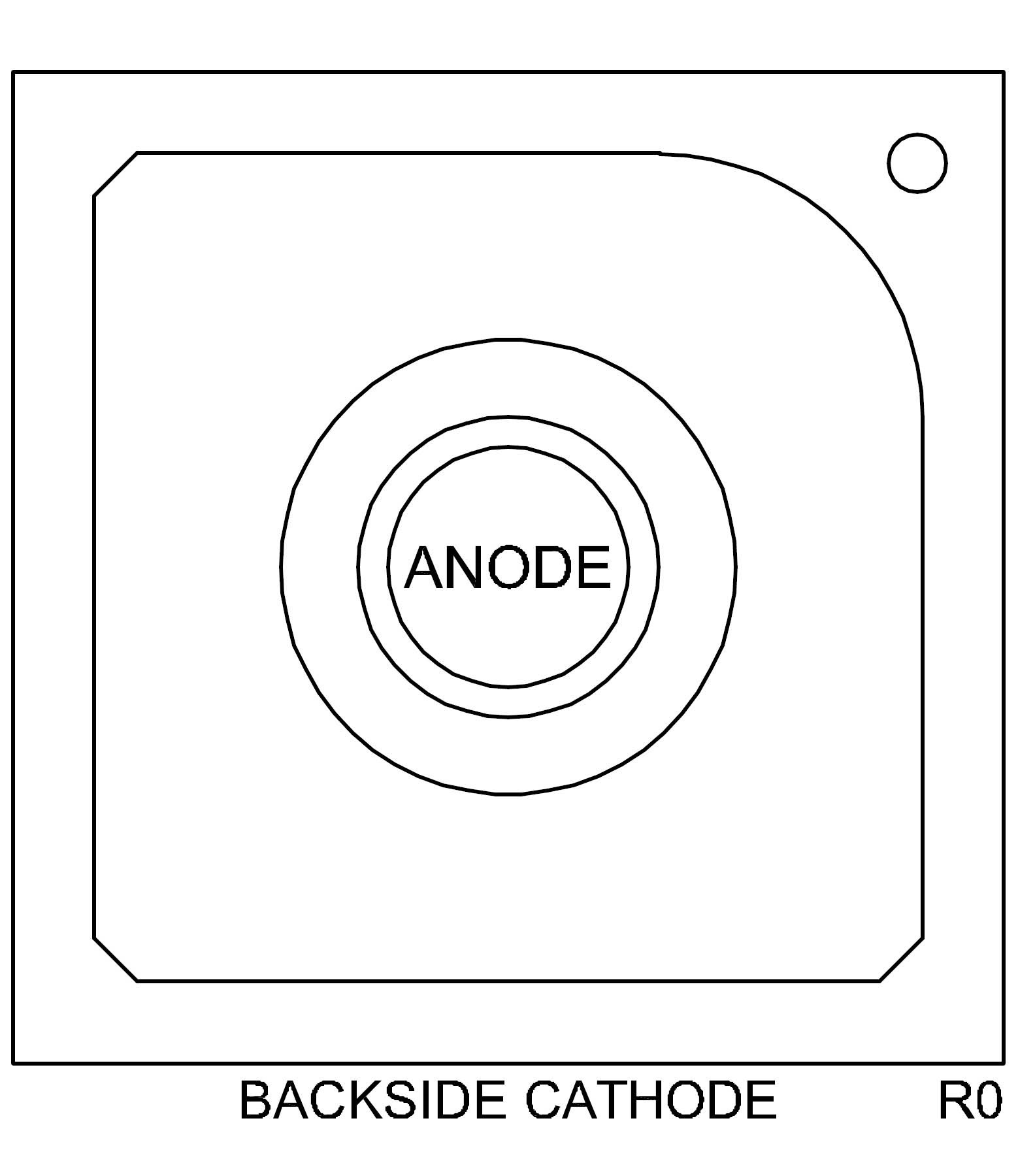

CPD51V-1N6263
Bare die,11.800 X 11.800 mils,Diode-Schottky (<1A),High Voltage Schottky Diode
The image for CPD51V-1N6263
is currently unavailable.
Please refer to the Device Datasheet for an image of the part case and material composition information.
Documentation Links:
Device Datasheet
Case & Material Composition Datasheet
Item Number Status Description Packaging Base Availability ECCN Code HTS Code Part Marking: Request Samples
CPD51V-1N6263-CM Active Bare die,11.800 X 11.800 mils,Diode-Schottky (<1A),High Voltage Schottky Diode WafflePack@400 Please call for Qty
 EAR99 8541.10.0040
CPD51V-1N6263-CT Active Bare die,11.800 X 11.800 mils,Diode-Schottky (<1A),High Voltage Schottky Diode WafflePack@400 Please call for Qty
 EAR99 8541.10.0040
CPD51V-1N6263-WN Active Bare die,11.800 X 11.800 mils,Diode-Schottky (<1A),High Voltage Schottky Diode Wafer@175,564*</br>*Estimated, die qty will vary based on probing Please call for Qty
 EAR99 8541.10.0040

Please note:
  1. If requesting Tin/Lead plated devices, add the suffix " TIN/LEAD" to the part number when ordering (example: 2N2222A TIN/LEAD).
  2. If requesting Lead (Pb) Free plated devices, add the suffix " PBFREE" to the part number when ordering (example: 2N2222A PBFREE).
A Central sales representative will confirm the availability of the plating type requested.

Additional Documentation Links:
Analytical Test Report:Wafer Transistor
Analytical Test Report:Wafer Schottky
Analytical Test Report:Wafer Switching Diode
Analytical Test Report:Die
Analytical Test Report:Die
Package Detail Document:WAFER
Analytical Test Report:Wafer Rectifier
Analytical Test Report:Wafer
Analytical Test Report:TVS Die
Analytical Test Report:Wafer/Die
Analytical Test Report:Die

Alternate Devices with Different Packaging:
Datasheet
Part Number
Description
Packaging
Package
Details &
Composition
Status
Availability

CMAD6263 		15mA,70V Surface mount Diode-Schottky (<1A) Single: High Voltage
Box, Reel
Active

CMDD6263 		70V Surface mount Diode-Schottky (<1A) Single: High Voltage
Box, Reel
Active

CMKD6263 		70V Surface mount Diode-Schottky (<1A) Triple: High Voltage
Box, Reel
Active

CMLD6263 		70V Surface mount Diode-Schottky (<1A) Dual: High Voltage: Same Polarity
Box, Reel
Discontinued, Stock Only

CMOD6263 		70V Surface mount Diode-Schottky (<1A) Single: High Voltage
Box, Reel
Active

CMPD6263 		70V Surface mount Diode-Schottky (<1A) Single: High Voltage
Box, Reel
Active

CMSD6263 		70V Surface mount Diode-Schottky (<1A) Single: High Voltage
Box, Reel
Active

1N6263 		Through-Hole Diode-Schottky (<1A) Single
Box, Reel
Discontinued, Stock Only<br><a href="https://my.centralsemi.com/search/search2.php?searchtext=CMDD6263">Replaced by:CMDD6263</a>

None
